Fanuc 6MB Configuration Document

Fanuc 6MB Configuration Document

CNC Parameters


Setting (HANDY) screen:
Punch code- 1=ISO
TV CHECK=0 OFF

Input Device 1=1

Input Device 2=1


Param screen:
0311 = 00001001

0340 = 2
0341 = 2

FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 7

1.13- ASCII Even

1.14- Stop Bits: 2

1.15- Handshake: XON/XOFF


Sending Options

2.11- Leader: %<10>

2.12- Trailer: %

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7


Receiving Options

3.11- Program identifier 1: O

3.12- Program Identifier 2: :

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True


Remote Commands

4.02- Request for file command: T-

4:11- Request to save command: S-


Additional Notes

Changing CNC Parameters:

To set parameters, set the PWE (Parameter Write Enable) switch on the main printed circuit board inside the machine to ENABLE. The machine will alarm.
Back up front, set the dial to MDI mode. Press the PARAM key.
Page down to 0311. Set its value to 00001001. (Set for DC Codes,4800 baud)
Go to 0340 and 0341. Set both of these to "2".
Restore the PWE switch to disable.
Press Reset to clear alarm.


Outputting CNC Programs:


To output a program, set the CNC to "edit" mode. Press the PROG key on the control panel.  Type in Oxxxx Press PUNCH.



Inputting CNC Programs:


To input a program, set the CNC to "edit" mode. Press the PROG key on the control panel. Type in the Oxxxx, and press READ.

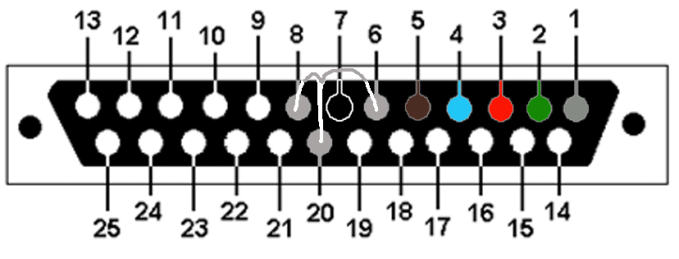

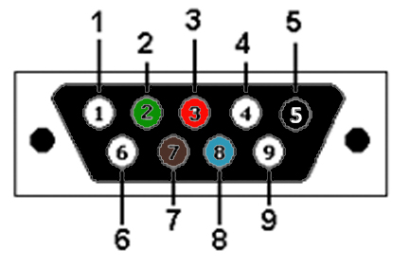

Wiring Diagram

Pinout includes RTS/CTS Handshaking


DB-9 com port

Wire color

DB-25 CNC

Jumper?


(Disconnected)

Shield

1



2 (Receive Data)

Green

2 (Transmit Data)



3 (Transmit Data)

Red

3 (Receive Data)



5 (Signal Ground)

Black

7 (Signal Ground)



7 (RTS)

Brown

5 (CTS)



8 (CTS)

Blue

4 (RTS)





6 (DSR)

8 (DCD)

20 (DTR)

JUMPER
