A Comprehensive Guide To Optimizing Haas CNC Setup

Haas Configuration

CNC Parameters

Newer Haas

Press SETNG to bring up the machine settings. Press right arrow until you get to I/O tab. Press WRITE/ENTER button (lower right corner of panel). Use left and right arrow to toggle between choices for each setting. Press WRITE/ENTER button to save each new setting.

           Older Haas

            Press SETNG to bring up the machine settings.
            Press Page Down until you see the screen labeled RS-232 PORTS (the label will be in the upper left portion of the screen as you page down).                   Use left and right arrow to toggle between choices for each setting. Press WRITE/ENTER button to save each new setting.



Set BAUD RATE SELECT: 9600
Set PARITY SELECT: EVEN
Set STOP BIT: 1
Set SYNCHRONIZATION: DC CODES
Set RS-232 DATA BITS: 7
Set LEADER TO PUNCH: NONE
Set EOB PATTERN: CR LF
Set ADD SPACES TO RS232 OUT: OFF


FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 9600

1.12- Data Bits: 7

1.13- ASCII Even

1.14- Stop Bits: 1

1.15- Handshake: XON/XOFF


Sending Options

2.11- Leader: %<10>

2.12- Trailer: %

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7


Receiving Options

3.11- Program identifier 1: O

3.12- Program Identifier 2:

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True


Remote Commands

4.02- Request for file command: GET-

4.03- Request for file command (drip feed): DNC-

4:11- Request to save command: PUT-



Additional Notes

Outputting CNC Programs

LIST PROG brings up the program list.
To send a program, use the arrow keys to highlight the program you wish to transmit, then press SELECT PROG, followed by SEND RS232.

Inputting CNC Programs

LIST PROG brings up the program list.

To receive a program, Press, END.  This will highlight ALL (at the very bottom) and press RECV RS232.

(On Newer model Haas you will see a Memory Tab. Press WRITE/ENTER to see the Program List and ALL.

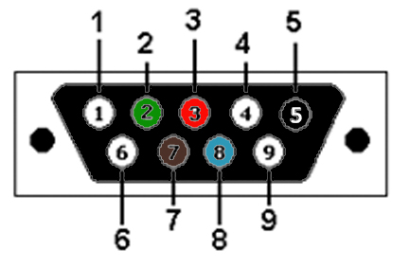

Wiring Diagram

Pinout includes RTS/CTS Handshaking

DB-9 com port

Wire color

DB-25 CNC

Jumper?

(Disconnected)

Shield

1



2 (Receive Data)

Green

2 (Transmit Data)



3 (Transmit Data)

Red

3 (Receive Data)



5 (Signal Ground)

Black

7 (Signal Ground)



7 (RTS)

Brown

5 (CTS)



8 (CTS)

Blue

4 (RTS)





6 (DSR)

8 (DCD)

20 (DTR)

JUMPER
