Complete Mazak M32 CNC Configuration Guide

Mazak M32 Configuration Document

CNC Parameters

G1 = 2 (CMT 4800 baud)

G19 - 2 (EIA 4800 baud)

G20 - 3 (2 stop bits)

G21 - 0 (even parity)

G22 - 0 (Disable parity check)

G23 - 3 (8 data bits)

G27 - 0 (CR/LF)

G29 - 3 (XON/XOFF)

G30 - 1 (No DC Code parity check)

G40 - 0 (No DC2/DC4)

G41 - 0 (No leader)

G42 - 600 (60 second wait)

G43 - 00000000 (ISO)

G44 - 0 (No spaces before tape)

G45 - 0 (No spaces between programs)

G48 - 0 (Disable rewind)

G49 - 1 (Load All enabled)

G50 - 00000000 (don't use M02, M30, M99 as end of program)


FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 7

1.13- ASCII Even

1.14- Stop Bits: 2

1.15- Handshake: XON/XOFF


Sending Options

2.11- Leader: %<10>

2.12- Trailer: %

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7


Receiving Options

3.11- Program identifier 1: O

3.12- Program Identifier 2:

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True


Remote Commands

4.02- Request for file command: GET-

4.03- Request for file command (drip feed): DNC-

4:11- Request to save command: PUT-


Mazatrol Options:

5.01- CMT protocol enabled: TRUE

5.02- CMT controller type: M32

5:11- CMT file extension:  .CMT

5.12- CMT filename to use when receiving:  Program number

5:14- CMT file suffix:  .CMT


Additional Notes

Changing CNC Parameters:

1. Press LEFT PAGE key

2. Press PARAM softkey

3. Cursor to parameter

4. Key in new value

5. Press INPUT

6. POWER DOWN CNC


Outputting CNC Programs:

Outputting EIA programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press DATA I/O

4. Press TAPE I/O softkey.
5. Press PUNCH NC->TAPE softkey.
6. Key in program # (work number)
7. Press INPUT.
8. Repeat Steps 6&7 for additional programs.
9. Press START.


Outputting Mazatrol programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press DATA I/O softkey.

4. Press CMT I/O softkey.
5. Press SAVE CMT softkey.
6. Key in program # (work number)
7. Press INPUT.
8. Repeat Steps 5&6 for additional programs.
9. Press START.


Inputting CNC Programs:

Inputting EIA programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press DATA I/O softkey.

4. Press TAPE I/O softkey.
5. Press ALL LOAD TAPE->NC softkey.
6. Press START.


Outputting Mazatrol programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press DATA I/O softkey.

4. Press CMT I/O softkey.
5. Press LOAD CMT softkey.
6. Key in program # (work number)
7. Press INPUT.
8. Repeat Steps 6&7 for additional programs.
9. Press START.

NOTE1: To avoid keying in program #'s for Mazatrol input, use the CMT CONTENTS function to load file contents onto the screen. Then select LOAD NC <- CMT and click START. Values will remain filled in for you.


Drip-feeding CNC Programs:

1. Set mode selector to TAPE
2. Cycle Start.

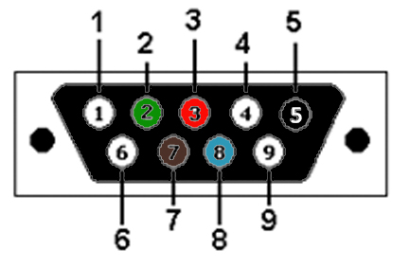

Wiring Diagram

Pinout includes RTS/CTS Handshaking


DB-9 com port

Wire color

DB-25 CNC

Jumper?


(Disconnected)

Shield

1



2 (Receive Data)

Green

2 (Transmit Data)



3 (Transmit Data)

Red

3 (Receive Data)



5 (Signal Ground)

Black

7 (Signal Ground)



7 (RTS)

Brown

5 (CTS)



8 (CTS)

Blue

4 (RTS)





6 (DSR)

8 (DCD)

20 (DTR)

JUMPER
